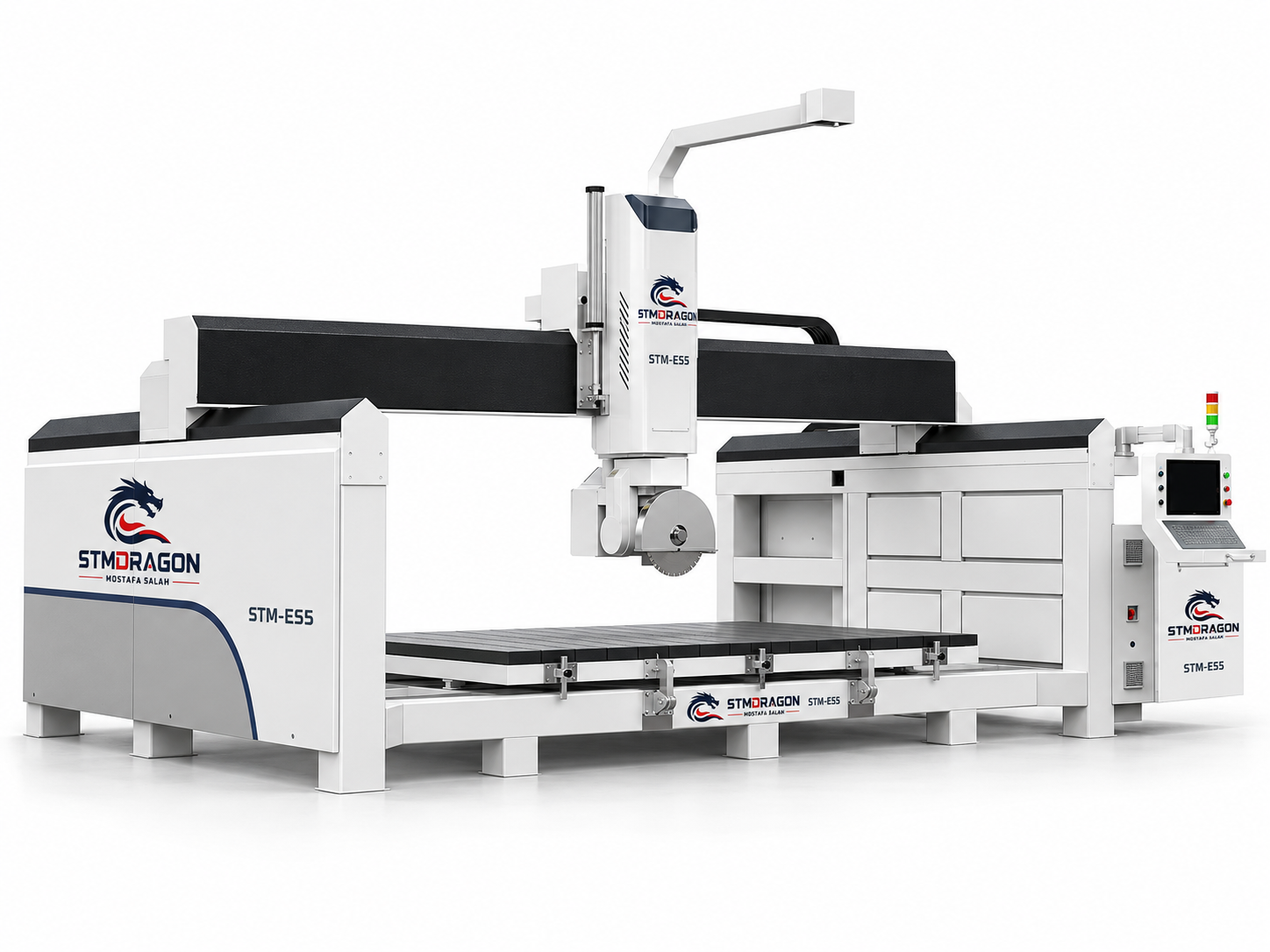

The STMDRAGON STM-ES5 is a 5-axis CNC stone bridge saw designed for professional stone fabrication and precision cutting applications. The machine combines X/Y/Z movement with A-axis 0–90° and C-axis ±360° rotation, allowing the cutting head to perform angled and multi-directional operations.
The machine supports granite, marble, artificial stone, slate, and similar stone materials. Its 450 mm saw blade and 11 kW saw motor provide a maximum cutting thickness of 100 mm. The working travel is 3200 × 2000 × 400 mm, while the worktable measures 3200 × 2000 mm and can tilt from 0–80° with a maximum turning load of 800 kg.
The integrated camera system helps automatically position stone slabs and can assist with cutting-path planning. The 5-axis head can perform straight cutting, 45° miter cutting, circular cutting, square cutting, sector cutting, oval cutting, drilling, and external edge polishing.
Key Technical Details
- Model: STM-ES5
- Machine Type: 5 Axis CNC Stone Bridge Saw
- Working Travel: X/Y/Z – 3200 × 2000 × 400 mm
- Worktable: 3200 × 2000 mm
- Table Turning: 0–80°
- Maximum Turning Load: 800 kg

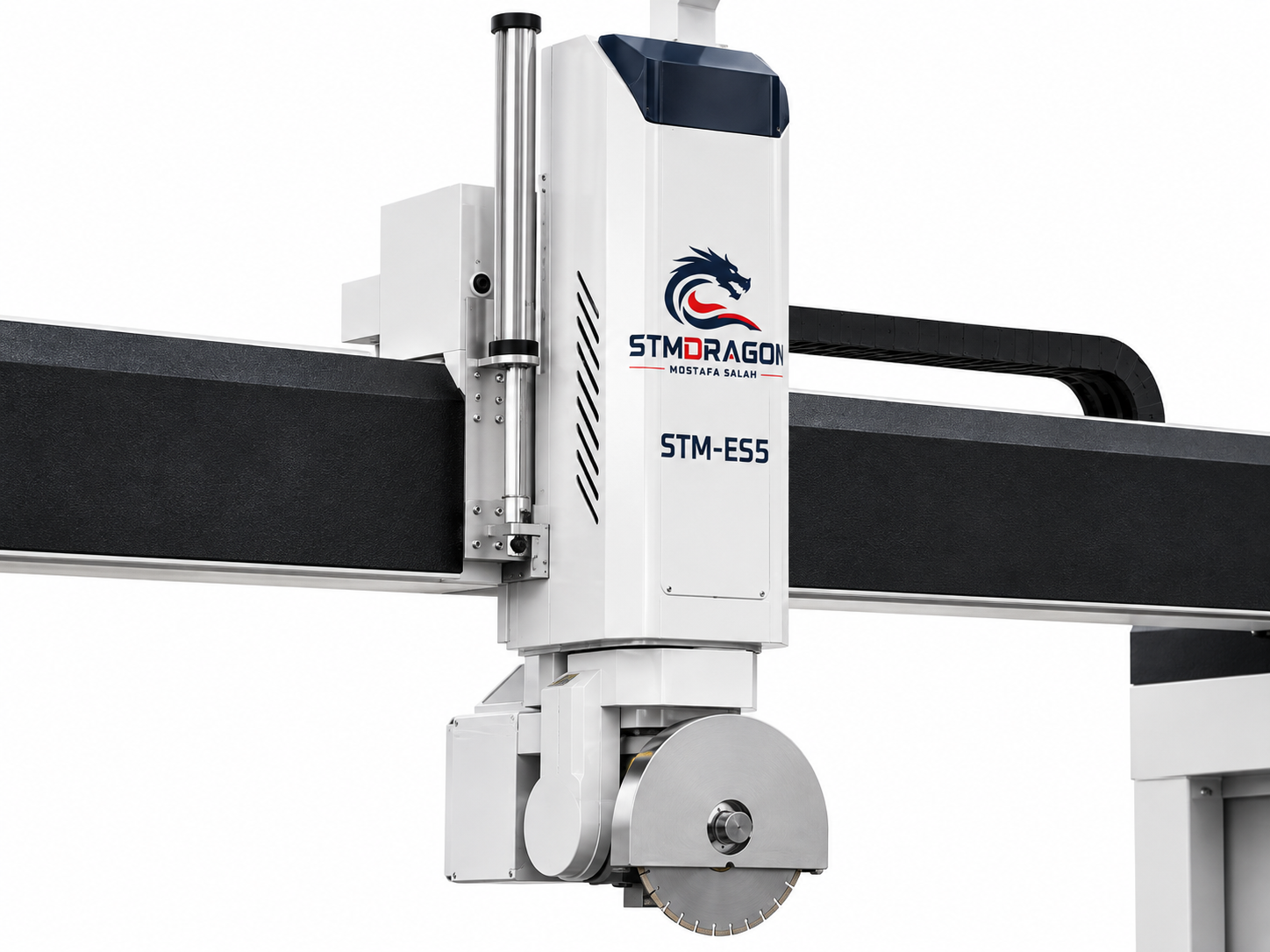

- Blade Diameter: 450 mm
- Maximum Cutting Thickness: 100 mm
- A Axis: 0–90°
- C Axis: ±360°
- X/Y Moving Speed: 30 m/min
- Z Moving Speed: 15 m/min
- Saw Motor: 11 kW, 3000 r/min rated speed
- Inverter: 15 kW BRICH

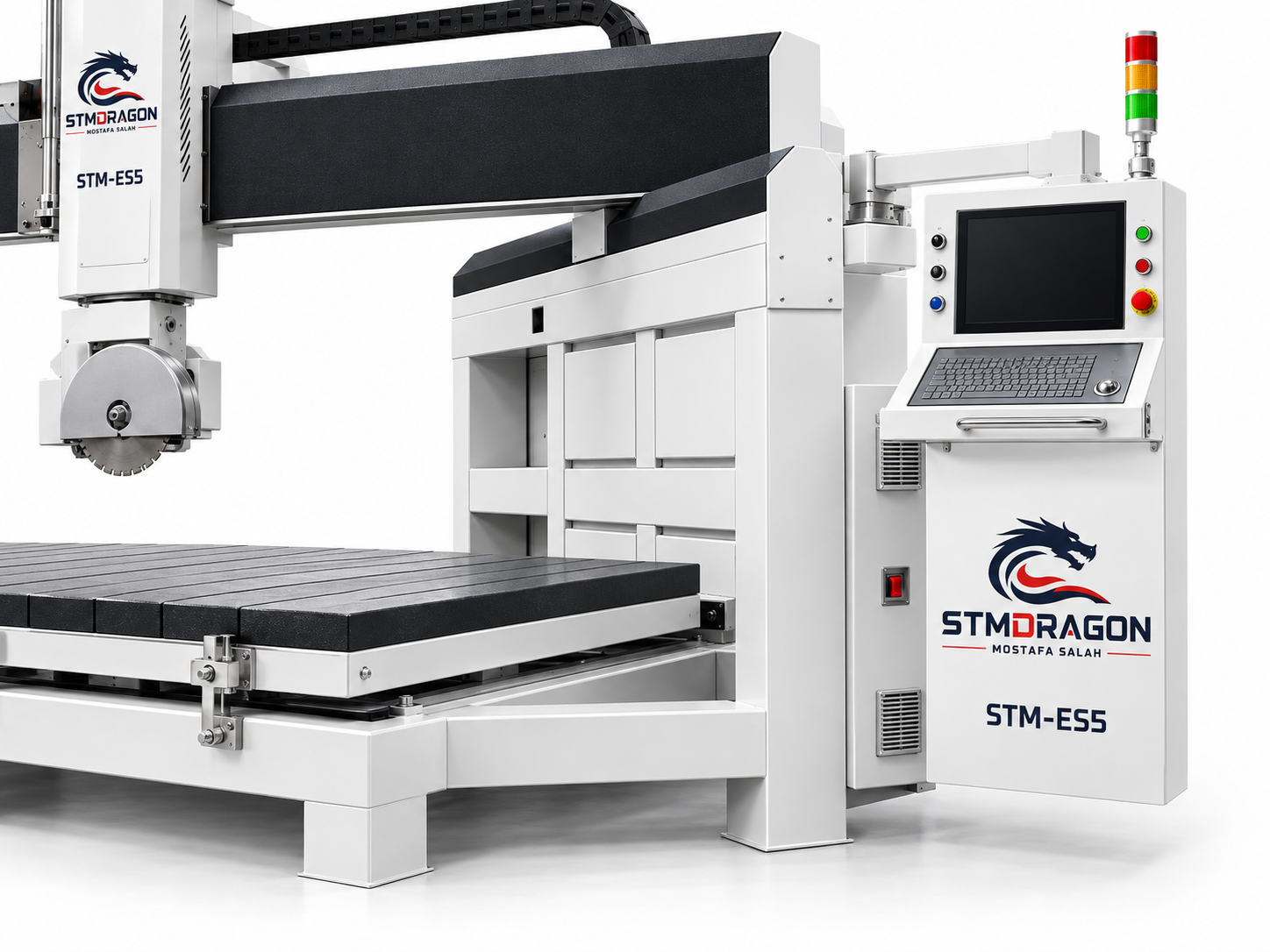

- Control System: Blue Elephant customized system with built-in CAM software
- Servo Motors: Absolute servo motors
- Guide Rail: #30 for X, Y and Z
- Rack: 2MT-WIN for X/Y
- Ball Screw: 3210PREYP for Z
- Reducer: Japan SHIMPO for X/Y
- Low-Voltage Electronics: French SCHNEIDER
- Working Air Pressure: 0.7–0.8 MPa
- Electrical Supply: 380V / 3 Phase / 50Hz
- Overall Machine Size: Approx. 5.85 × 4.5 × 3.3 m
- Machine Weight: Approx. 5.5 tons
アプリケーション
Suitable for professional processing of granite, marble, artificial stone, slate, and other compatible stone materials. It can be used in stone fabrication, countertop production, architectural stone processing, prefabricated building projects, home decoration, and slate-related applications.
Warranty & Shipping
- 保証：1年
- 配送：提供された情報に基づき7～30日
- After-Sale Service: Free lifetime online technical support; overseas service available
