STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning

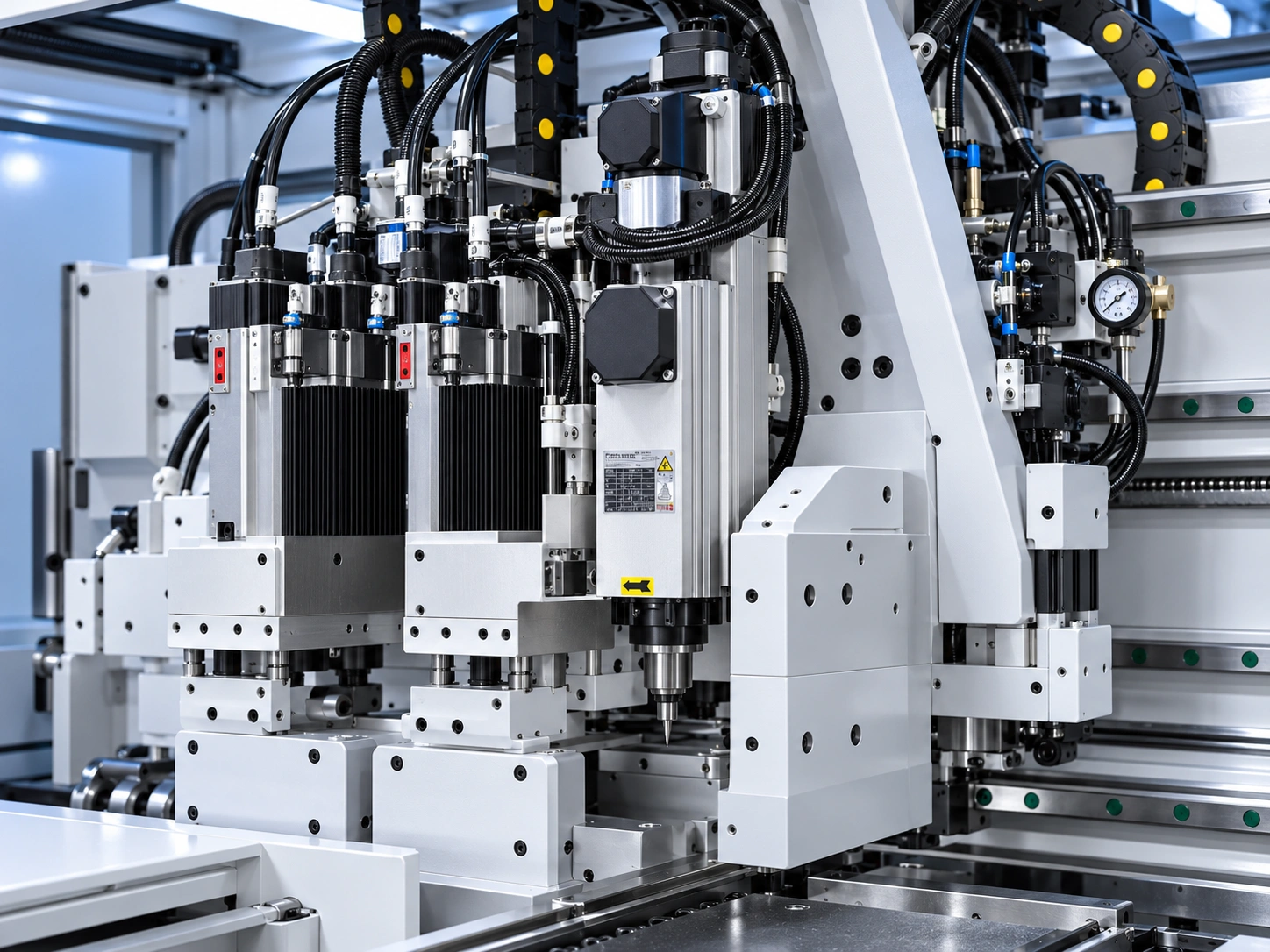

STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning - Image 2

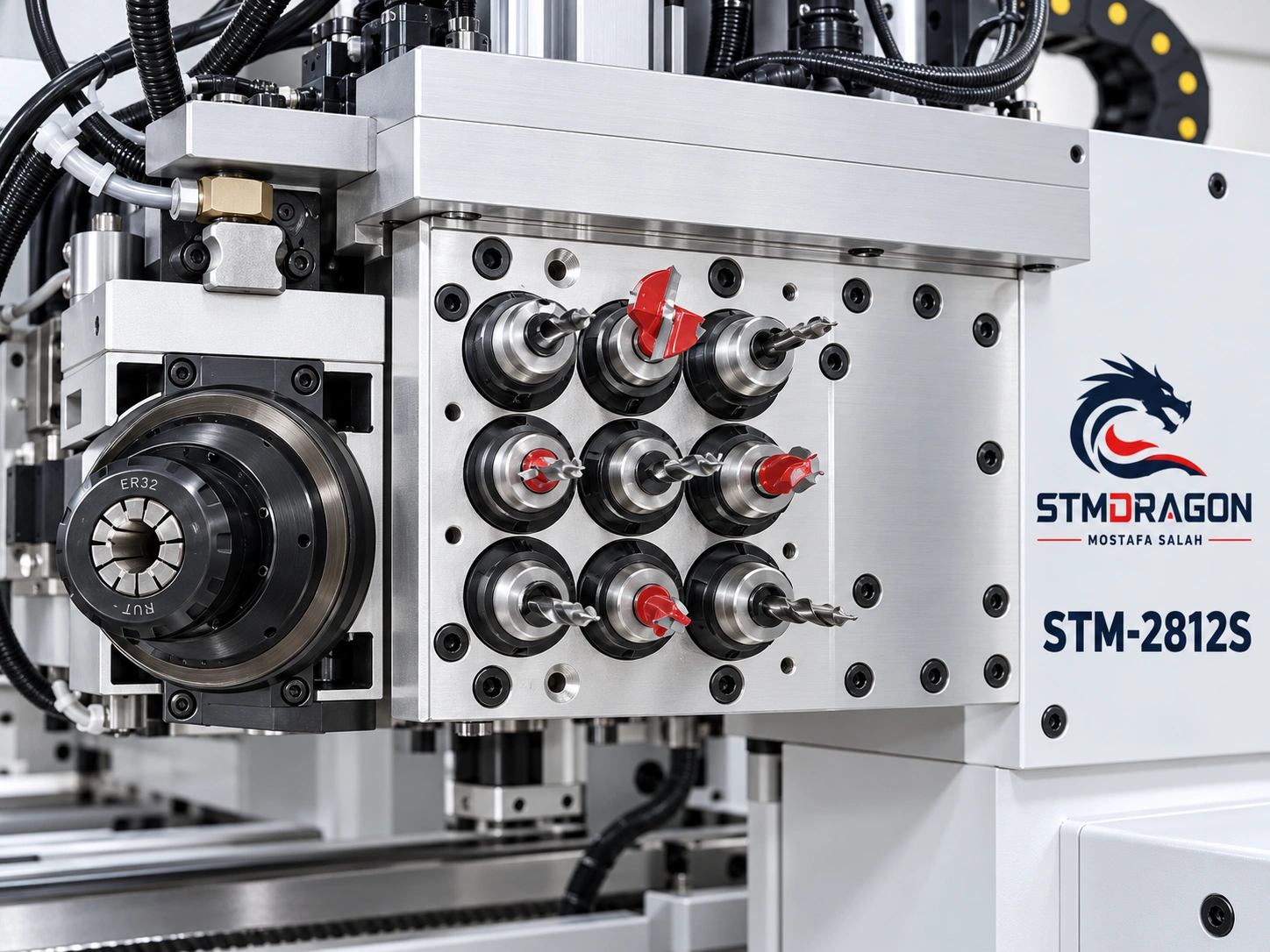

STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning - Image 3

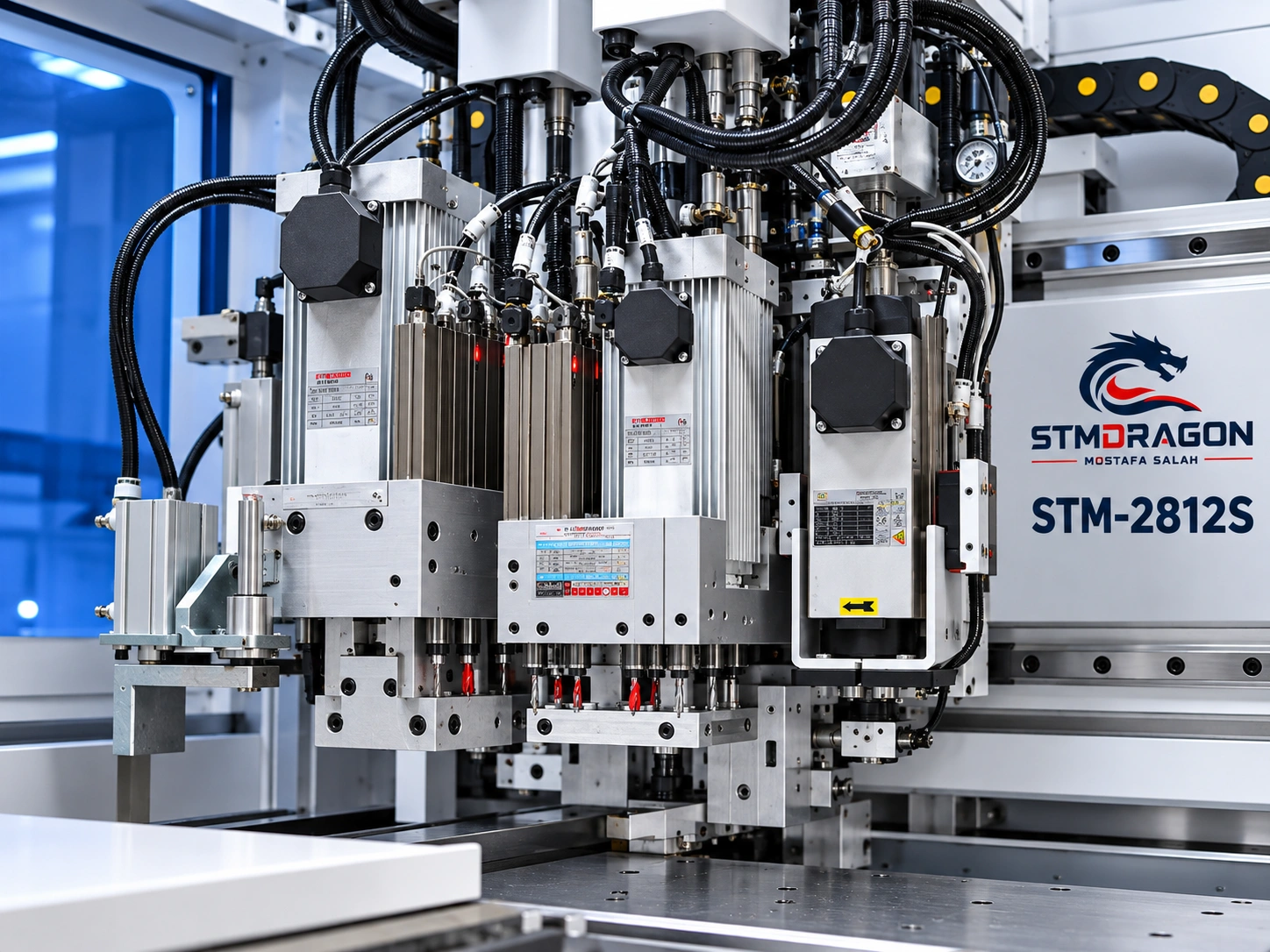

STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning - Image 4
Drilling & Boring Machines

STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning

STMDRAGON STM-2812S is a heavy-duty 6-side drilling machine designed for efficient multi-surface panel processing in furniture and woodworking production. It features dual 3.5 kW main spindles, ESTUN absolute servo drive, automatic positioning, air-floating tabletop, and barcode/QR code processing support.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning

ModelSTM-2812S
Machine Type6 Side Drilling Machine
Main Spindles2 × 3.5 kW CC
Spindle Speed18,000 RPM
ColletER25
Drive MethodServo Drive
Drive MotorESTUN Absolute Value Servo
Servo DriverESTUN Absolute Value Driver
Frequency ConverterEDT, 3.7 kW adjustable frequency converter
Control SystemHigerman System
ReducerJapan Shimpo
Guide RailTaiwan Square Rail
RackGerman High-Precision Helical Gear
PositioningAutomatic Positioning System
Side LeaningAutomatic
CableHigh-Flexible Cable
Machine BodyHeavy-Duty Bed with Annealing Treatment
Working TableAir-Floating Tabletop with 0.75 kW High-Pressure Blower
Dust CollectionUpper Ø200 mm / Lower Ø125 mm
Warranty1 Year
Shipping7–30 Days according to supplied information
Production/HandlingTo Be Confirmed for the exact STM-2812S configuration
Applications

Applications: STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning

The STMDRAGON STM-2812S 6 Side Drilling Machine is designed for high-efficiency drilling and multi-surface processing of furniture and woodworking panels. Its six-side processing capability allows multiple operations to be completed in a single setup, helping improve positioning accuracy and production efficiency.

The machine uses 2 × 3.5 kW CC main spindles with a maximum spindle speed of 18,000 RPM and ER25 collets. Motion is controlled by an ESTUN absolute value servo system, including ESTUN servo motors and drivers. A Japan Shimpo reducer, Taiwan square rails, and German high-precision helical gear rack provide stable and accurate machine movement.

Key Features

  1. Model: STM-2812S
  2. Machine Type: 6 Side Drilling Machine
  3. Main Spindles: 2 × 3.5 kW CC
  4. Spindle Speed: 18,000 RPM
  5. Collet: ER25
  6. Drive Method: Servo Drive
  7. Drive Motor: ESTUN Absolute Value Servo
  8. Servo Driver: ESTUN Absolute Value Driver
  9. Frequency Converter: EDT, 3.7 kW adjustable frequency converter
  10. Control System: Higerman System
  11. Reducer: Japan Shimpo
  12. Guide Rail: Taiwan Square Rail
  13. Rack: German High-Precision Helical Gear
  14. Positioning: Automatic Positioning System
  15. Side Leaning: Automatic
  16. Cable: High-Flexible Cable
  17. Machine Body: Heavy-Duty Bed with Annealing Treatment
  18. Working Table: Air-Floating Tabletop with 0.75 kW High-Pressure Blower
  19. Dust Collection: Upper Ø200 mm / Lower Ø125 mm

Processing & Automation

The STM-2812S supports six-surface processing in one setup, helping reduce repeated positioning and improve production consistency. Its double-grip positioning system provides stable panel holding during machining.

The machine can also support continuous barcode/QR code scanning, allowing machining graphics files and NC programs to be automatically retrieved for production workflows.

An optional four-position linear tool magazine can accommodate multiple cutting tools for invisible-part processing and multi-slot machining. Flexible front, rear, or side discharge options are also available for integration with automated loading and unloading systems.

Applications

Suitable for furniture and panel-processing production where multi-side drilling, slotting, invisible-part processing, and automated panel machining are required.

Warranty & Shipping

  1. Warranty: 1 Year
  2. Shipping: 7–30 Days according to supplied information
  3. Production/Handling: To Be Confirmed for the exact STM-2812S configuration

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 1650 kg
Dimensions 95 × 45 × 55 cm
Model

STM-2812S
Machine Type

6 Side Drilling Machine
Main Spindles

2 × 3.5 kW CC
Spindle Speed

18,000 RPM
Collet

ER25
Drive Method

Servo Drive
Drive Motor

ESTUN Absolute Value Servo
Servo Driver

ESTUN Absolute Value Driver
Frequency Converter

EDT, 3.7 kW adjustable frequency converter
Control System

Higerman System
Reducer

Japan Shimpo
Guide Rail

Taiwan Square Rail
Rack

German High-Precision Helical Gear
Positioning

Automatic Positioning System
Side Leaning

Automatic
Cable

High-Flexible Cable
Machine Body

Heavy-Duty Bed with Annealing Treatment
Working Table

Air-Floating Tabletop with 0.75 kW High-Pressure Blower
Dust Collection

Upper Ø200 mm / Lower Ø125 mm
Warranty

1 Year
Shipping

7–30 Days according to supplied information
Production/Handling

To Be Confirmed for the exact STM-2812S configuration
Request a quote

Request a quote for STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-2812S 6 Side Drilling Machine with Servo Drive & Automatic Positioning?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
