STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting

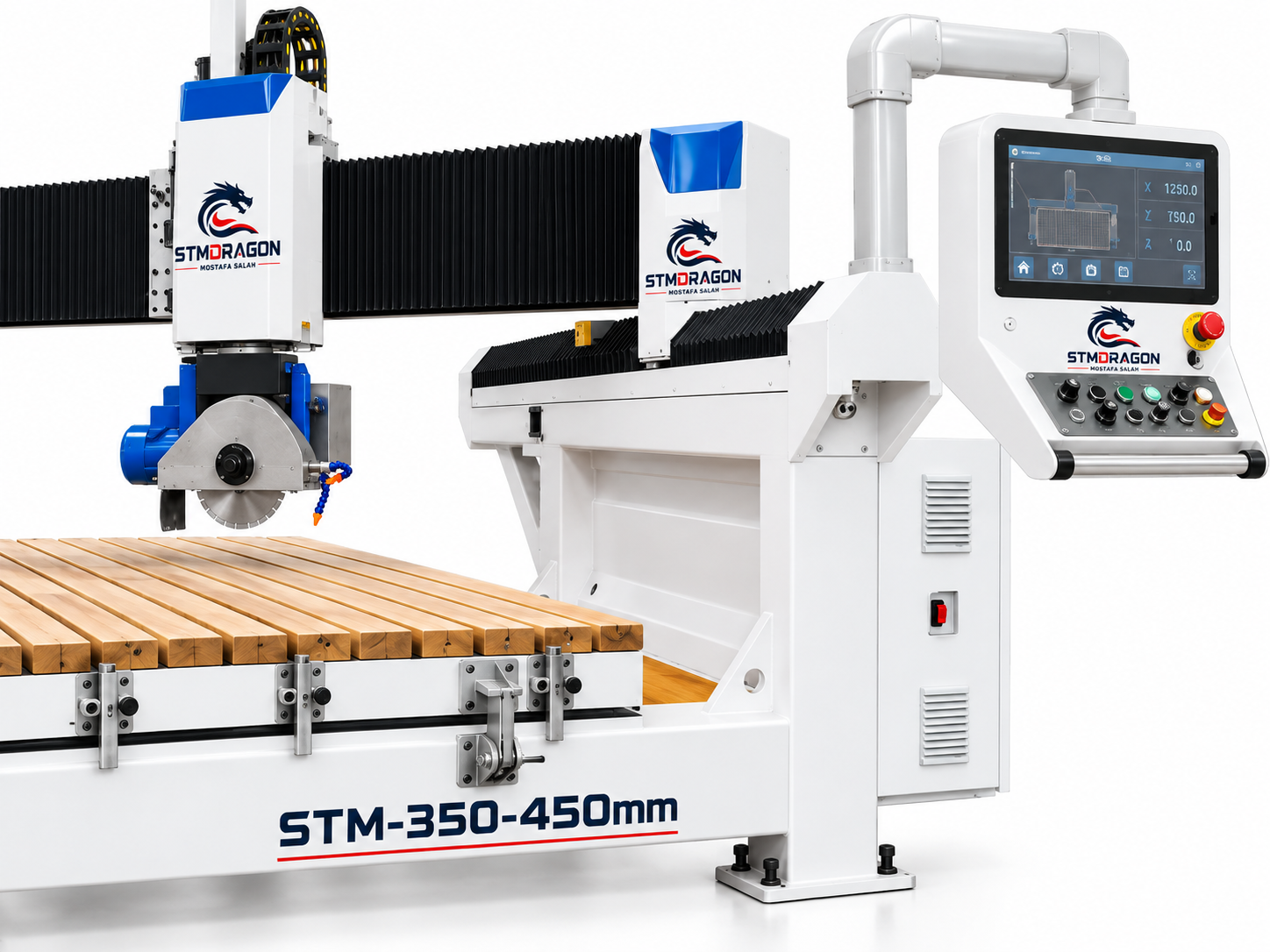

STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting - Image 2

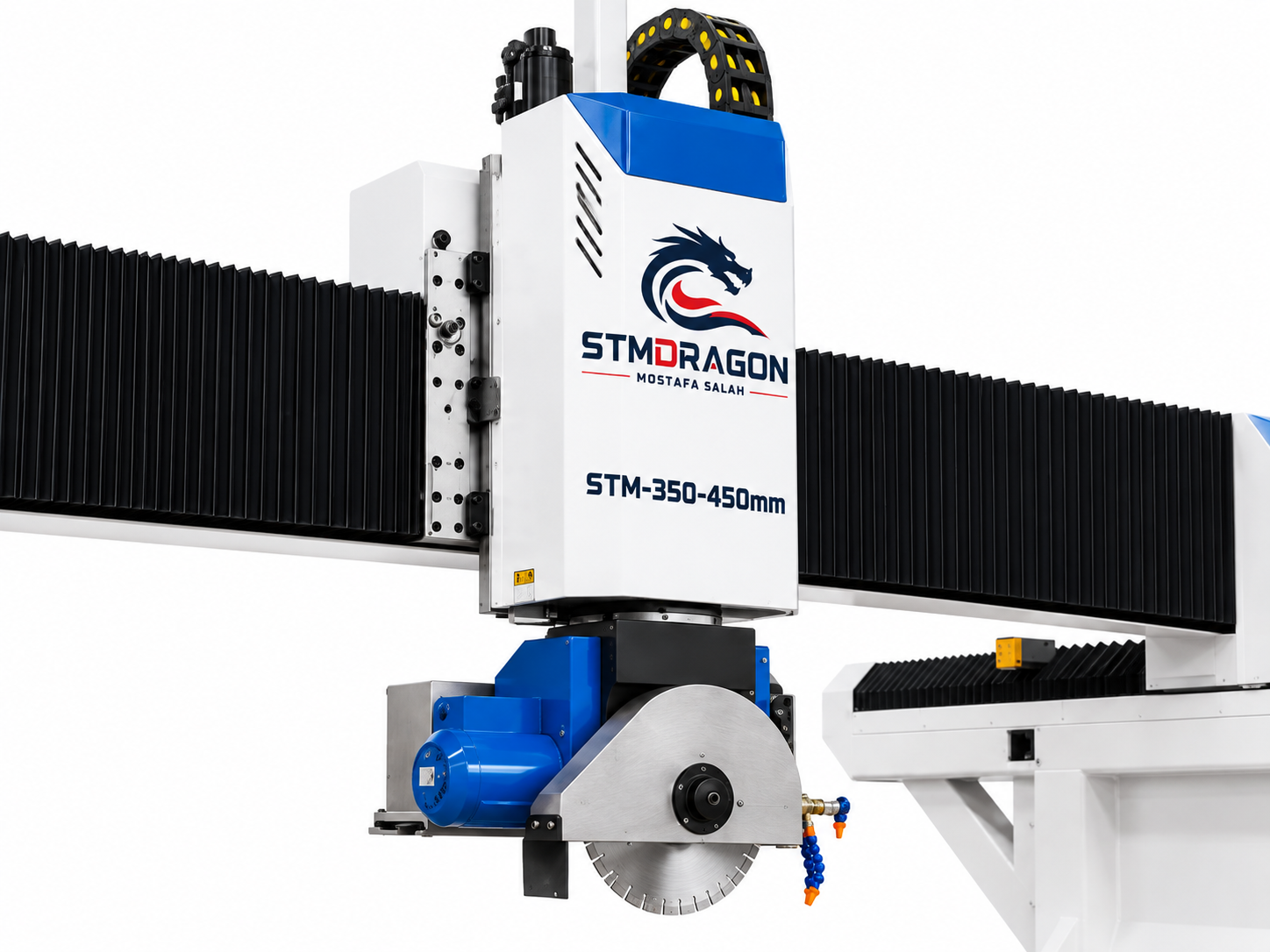

STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting - Image 3

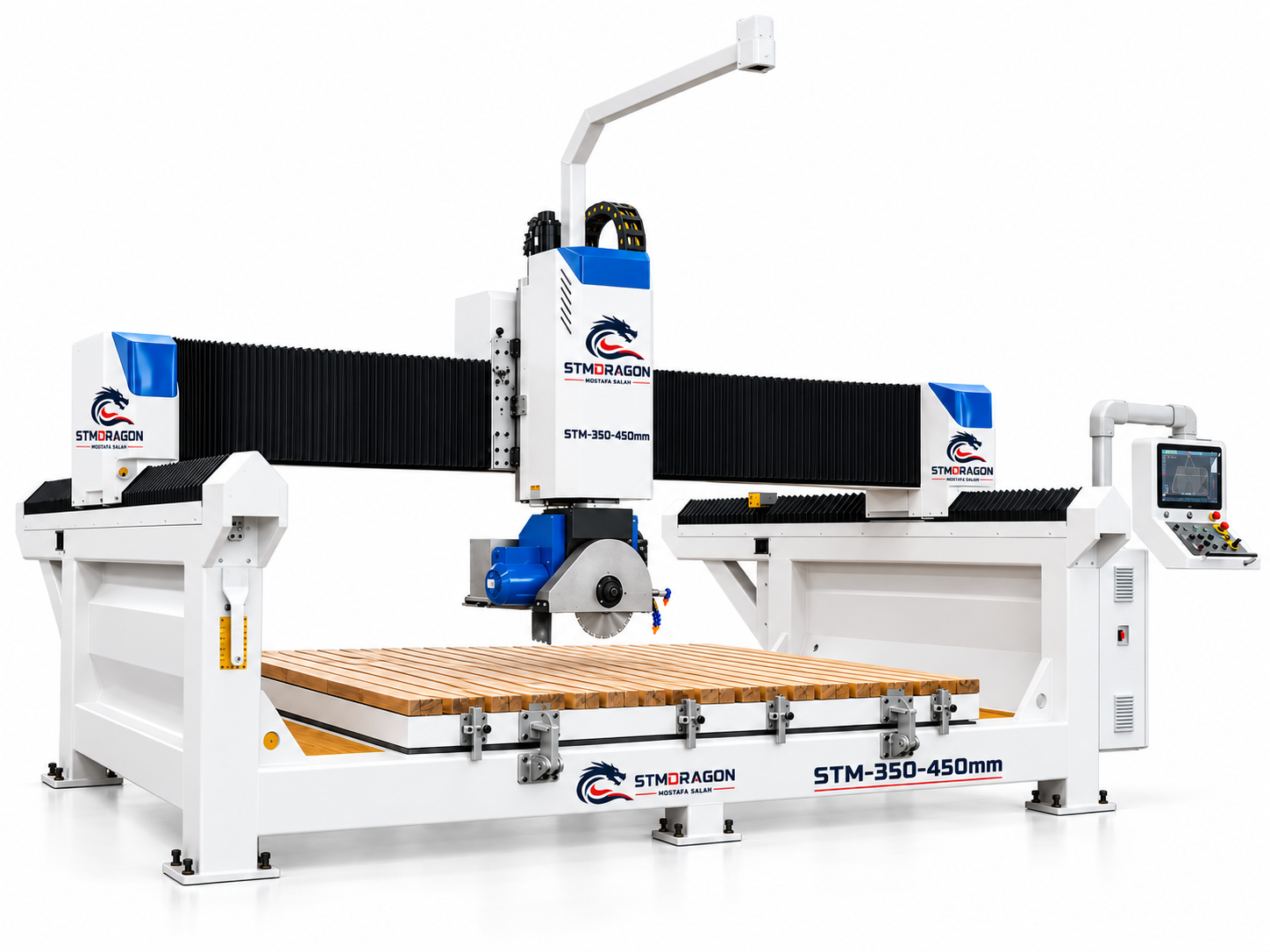

STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting - Image 4
CNC Stone Cutting

STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting

The STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine is designed for precision cutting and processing of granite, marble, artificial stone and slate. It features a 3200 × 2000 mm worktable, 100 mm cutting thickness, 0–90° blade tilt and 5-axis movement for miter cutting, drilling, edging and polishing applications.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting

ModelSTM-350-450mm
Machine Type5 Axis CNC Bridge Saw
Suitable MaterialsGranite, Marble, Artificial Stone, Slate
Table Size3200 × 2000 mm
Maximum Cutting Thickness100 mm
Blade Diameter350–450 mm
Saw Blade Motor22 kW, 3000 rpm
Blade Tilt Angle0–90°
Worktable Tilt0–85°
Voltage380V
Frequency50Hz
Phase3 Phase
CNC SystemBlue Elephant Custom System – NCStudio
Motors & DrivesWEIHONG
ReducerShimpo
Guide RailsHIWIN #30 for X/Y/Z axes
RackPCRCH 2M
Lubrication1.5L Automatic Lubrication
ChassisSide-Mount Chassis
Table StructureFlip Wooden Tabletop
Head RotationUp to 360°
Robotic Arm CapacityUp to 75 kg
Warranty1 Year
Technical SupportFree lifetime online technical support
Overseas ServiceAvailable
Shipping7–30 Days according to the supplied information
Applications

Applications: STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting

The STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine is an industrial stone processing machine designed for accurate cutting, mitering, drilling, edging and polishing of granite, marble, artificial stone and slate. Its 5-axis head provides multi-directional interpolation, while the worktable can tilt from 0–85° for flexible stone processing.

The machine is equipped with a 3200 × 2000 mm table, supports cutting thickness up to 100 mm, and uses a 350–450 mm blade. The saw blade system is specified with a 22 kW motor rated at 3000 rpm. The machine also includes automatic plate positioning with camera assistance, suction-cup material handling, tool measurement and infrared spotlight functions.

Key Technical Details

  1. Model: STM-350-450mm
  2. Machine Type: 5 Axis CNC Bridge Saw
  3. Suitable Materials: Granite, Marble, Artificial Stone, Slate
  4. Table Size: 3200 × 2000 mm
  5. Maximum Cutting Thickness: 100 mm
  6. Blade Diameter: 350–450 mm
  7. Saw Blade Motor: 22 kW, 3000 rpm
  8. Blade Tilt Angle: 0–90°
  9. Worktable Tilt: 0–85°
  10. Voltage: 380V
  11. Frequency: 50Hz
  12. Phase: 3 Phase
  13. CNC System: Blue Elephant Custom System – NCStudio
  14. Motors & Drives: WEIHONG
  15. Reducer: Shimpo
  16. Guide Rails: HIWIN #30 for X/Y/Z axes
  17. Rack: PCRCH 2M
  18. Lubrication: 1.5L Automatic Lubrication
  19. Chassis: Side-Mount Chassis
  20. Table Structure: Flip Wooden Tabletop
  21. Head Rotation: Up to 360°
  22. Robotic Arm Capacity: Up to 75 kg

Main Functions

The 5-axis configuration supports straight cutting, circular and square cutting, sector and oval cutting, 45° miter cutting, drilling, edge processing and polishing. The camera positioning system helps locate stone slabs and generate cutting paths for improved production efficiency.

Applications

Suitable for stone fabrication, granite and marble processing, slate processing, prefabricated building components, kitchen and bathroom countertop production, architectural stonework and home decoration projects.

Warranty & Support

  1. Warranty: 1 Year
  2. Technical Support: Free lifetime online technical support
  3. Overseas Service: Available
  4. Shipping: 7–30 Days according to the supplied information

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 7700 kg
Dimensions 180 × 100 × 90 cm
Model

STM-350-450mm
Machine Type

5 Axis CNC Bridge Saw
Suitable Materials

Granite, Marble, Artificial Stone, Slate
Table Size

3200 × 2000 mm
Maximum Cutting Thickness

100 mm
Blade Diameter

350–450 mm
Saw Blade Motor

22 kW, 3000 rpm
Blade Tilt Angle

0–90°
Worktable Tilt

0–85°
Voltage

380V
Frequency

50Hz
Phase

3 Phase
CNC System

Blue Elephant Custom System – NCStudio
Motors & Drives

WEIHONG
Reducer

Shimpo
Guide Rails

HIWIN #30 for X/Y/Z axes
Rack

PCRCH 2M
Lubrication

1.5L Automatic Lubrication
Chassis

Side-Mount Chassis
Table Structure

Flip Wooden Tabletop
Head Rotation

Up to 360°
Robotic Arm Capacity

Up to 75 kg
Warranty

1 Year
Technical Support

Free lifetime online technical support
Overseas Service

Available
Shipping

7–30 Days according to the supplied information
Request a quote

Request a quote for STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting.

Send your production requirement, electrical standard and destination port. We will reply with the suitable configuration and a current quotation.

Custom configuration
Export documents
Installation support
Spare parts available
Technical, ordering & delivery FAQ

Questions about STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting

Clear answers before you request your tailored machine proposal.

Can I get a price for STMDRAGON STM-350-450mm 5 Axis CNC Bridge Saw Machine for Stone Cutting?

Yes. Send STMDRAGON your required configuration, capacity, working size, electrical standard and destination port. We will prepare a current quotation.

Why is the price not shown as one fixed number?

Industrial machines are configured for each project. The final price can depend on capacity, automation, electrical components, optional equipment, packing and shipping terms.

Can the machine be customized?

Yes. We can discuss working size, output, control system, safety options, feeding and discharge equipment, and other configuration requirements.

What power supply can you provide?

The electrical standard can be prepared for the destination country. Share the required voltage, frequency and phase in your enquiry.

Can I request Siemens, Schneider or other electrical components?

Preferred electrical brands can be discussed and confirmed in the final technical proposal.

Is the machine suitable for my material?

Tell us the material type, thickness, dimensions and target output. STMDRAGON will recommend the suitable configuration.

What information should I send for a quotation?

Please send the product name, capacity target, working size, material, electrical standard, destination country or port, and any required options.

What is the usual warranty?

Warranty terms are confirmed in the final quotation. A 12-month warranty is commonly offered according to the agreed equipment scope.

Are spare parts available?

Yes. Recommended spare parts can be supplied with the machine or arranged later according to the final order.

Can you provide operation manuals?

English technical documents can be included according to the agreed machine scope.

Can I inspect the machine before shipment?

Yes. Factory inspection, video testing or a third-party inspection can be arranged before shipment.

Do you arrange FOB or CIF shipping?

Our quotations can be prepared on FOB China port terms. CIF shipping to your destination port is available on request.

How is the machine packed?

Packing is selected according to machine size, transport method and destination. Export packing details are confirmed before shipment.

What is the production lead time?

Lead time depends on the configuration and factory schedule. The confirmed production period appears in the final quotation.

Do you provide installation support?

Installation, commissioning and remote technical support can be discussed according to the project and destination.

Can STMDRAGON help with import documents?

We can coordinate the commercial invoice, packing list and normal export documentation needed for the agreed shipment.

Can I buy one set first?

Yes. Most machines can be quoted as one set, subject to the final configuration and factory terms.

How do I know the machine model is right for me?

Send your production target and space details. Our team will compare suitable models and configurations before you order.

Can you support customers after delivery?

STMDRAGON provides after-sales coordination, technical follow-up and spare-parts support according to the agreed order scope.

How do I contact STMDRAGON now?

Use the Request a Quote form below, contact us by WhatsApp, or visit the Contact page with your project details.
