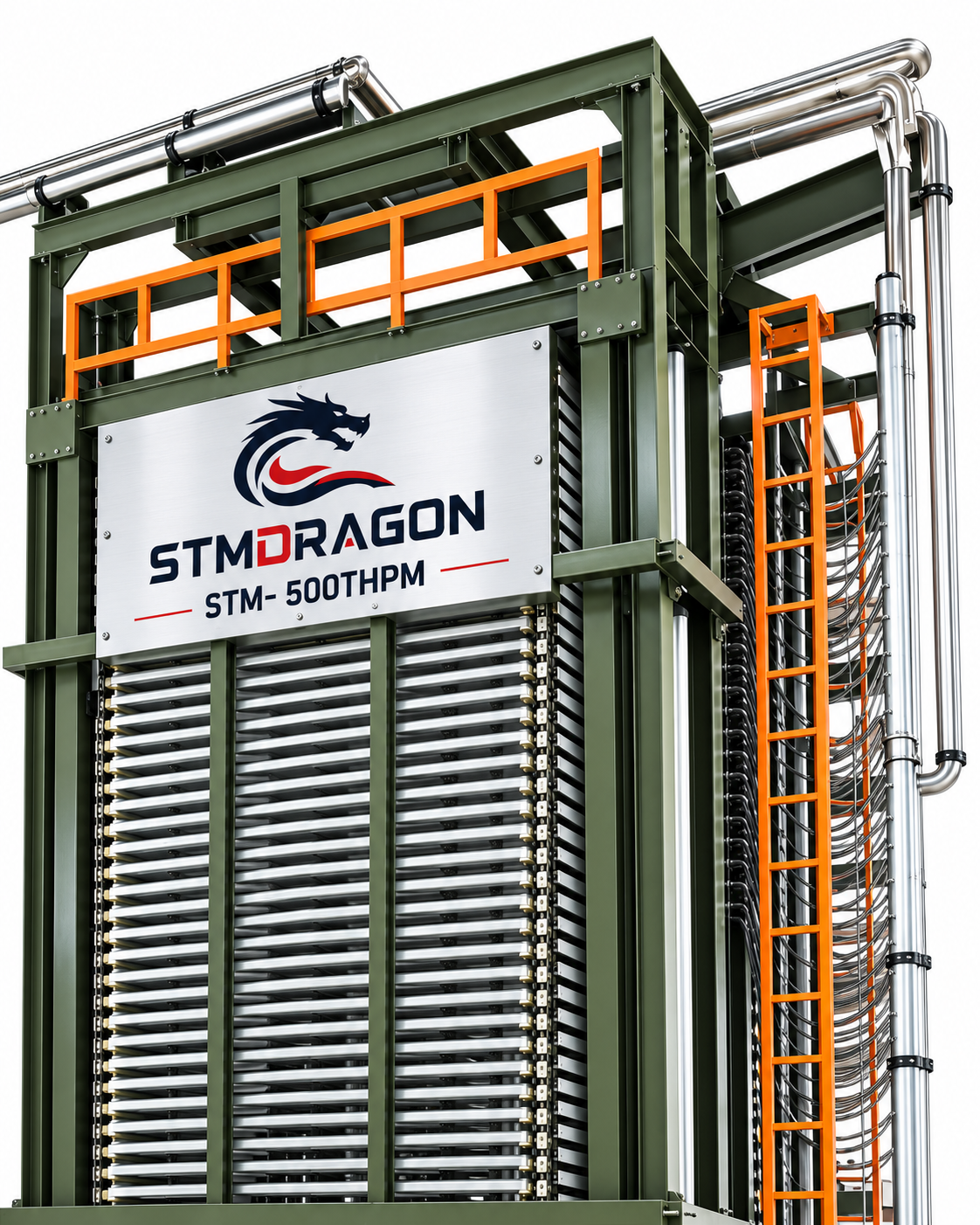

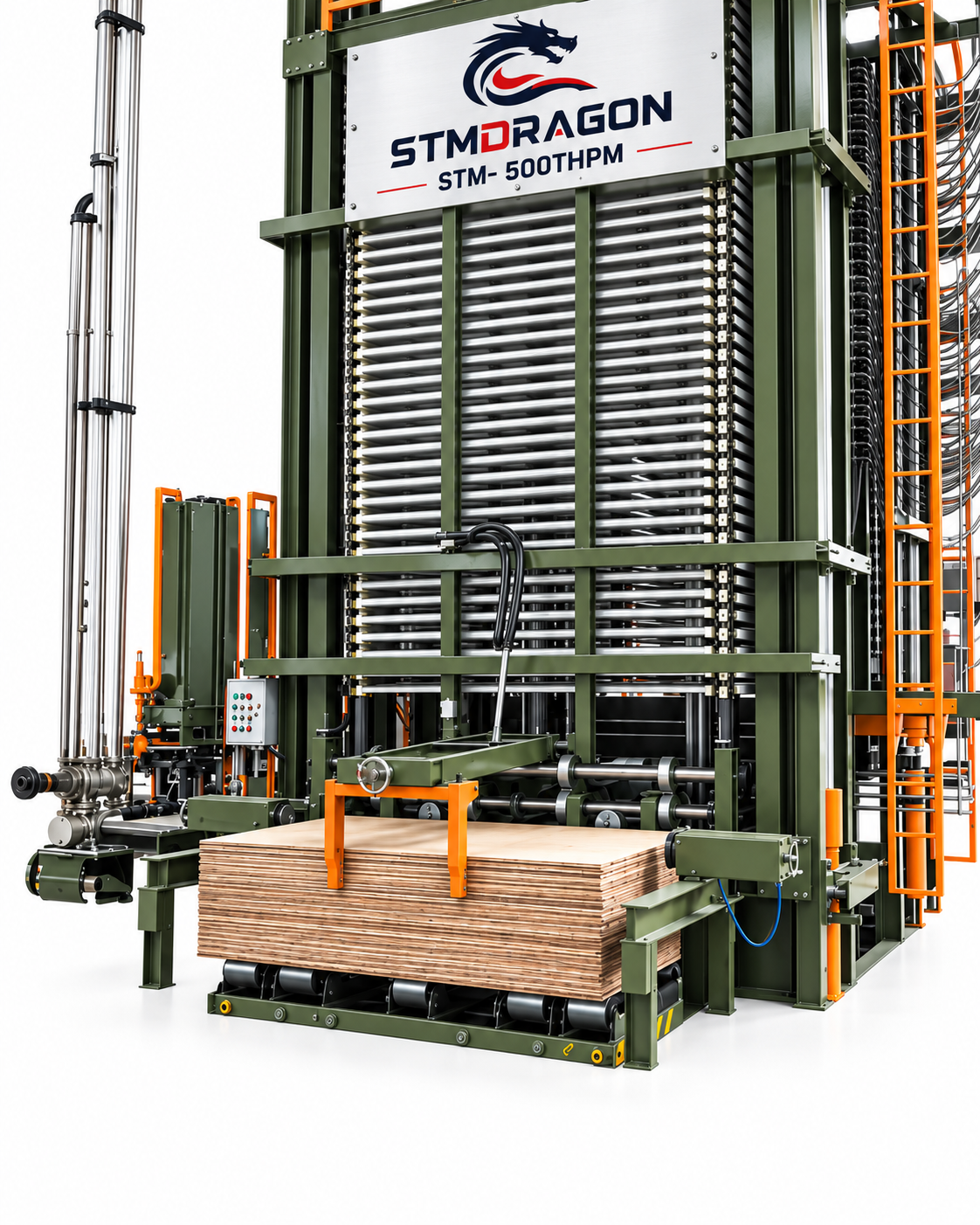

The STMDRAGON STM-500THPM Plywood Hot Press Machine is an industrial hydraulic pressing machine designed primarily for plywood production. It applies controlled heat and hydraulic pressure to bonded veneer layers to form strong, stable plywood panels.
The machine supports multiple configurations including 15, 18, 20, 25, 30, and 50 layers, with the final layer configuration selected according to the customer’s production requirements. The nominal pressure range available from the source is 400T, 500T, 600T, and 800T; this listing is configured under model STM-500THPM, representing the 500-ton configuration.
Key Product Details:
- Nominal Pressure: 500 Ton configuration
- Feeding Direction: Transverse
- Layers: 15 / 18 / 20 / 25 / 30 / 50, according to configuration
- Hydraulic Cylinders: 6 × 280 mm × 1440 mm
- Quick Lifting Cylinders: 2 × 140 mm
- Opening: 80–100 mm or according to requirements
- No-Load Closing Time: Approximately 15 seconds
- Panel Sizes: 915 × 2150 mm, 1220 × 2440 mm, 1530 × 3000 mm and other sizes according to configuration
- Power Information: 7.5 kW + 22 kW; source also lists 25 kW
- Electrical Supply: 3 Phase / 380V / 50Hz
- Machine Dimensions: Approximately 3600 × 1370 × 4900 mm
- Machine Weight: Approximately 33,000 kg
- Warranty: 1 Year
- Shipping: 7–30 Days according to the supplied information
The STM-500THPM is suitable for plywood factories and manufacturing plants. Plywood produced using this type of hot press is commonly used in furniture, office products, packaging, speakers, exhibition products, and other wood-based applications.
The machine can be integrated into a complete plywood production line including veneer peeling, veneer drying, gluing, pre-pressing, hot pressing, edge trimming, and sanding processes.
