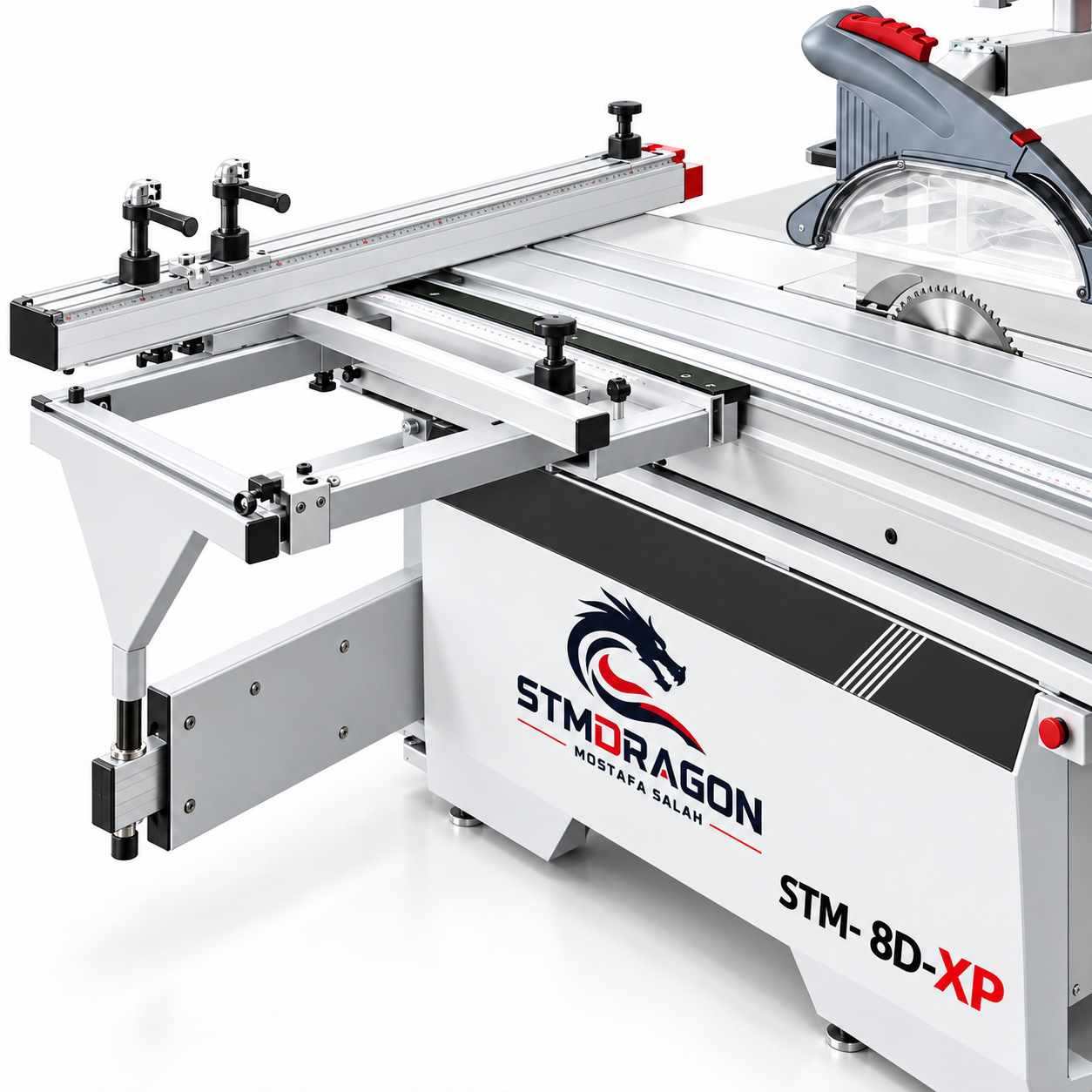

STMDRAGON STM-8D-XP Automatic Panel Saw with Servo Rip Fence & 45° Tilting

The STMDRAGON STM-8D-XP Panel Saw is a heavy-duty industrial panel cutting machine designed for accurate and efficient processing of wood panels and furniture materials. It combines a large 3200 × 435 mm sliding table, motorized saw adjustment, servo-controlled blade tilting, and an electrical servo rip fence for precise cutting operations.

The machine uses a 5.5 kW main motor with a main saw spindle speed of 3000/4000/5000 rpm, while the 0.75 kW scoring motor operates at 8000 rpm. The main saw supports blade diameters from 250–400 mm, with a standard specification of Ø300 mm. The scoring saw blade diameter is Ø120 mm.

The saw blade can be electrically tilted from 0–45° by servo motor control, providing flexibility for straight and angled panel cutting. With a Ø300 mm main saw blade, the cutting height is approximately 80 mm at 90° and 55 mm at 45°.

For precision material positioning, the STM-8D-XP includes a servo motor rip fence with a maximum cutting width of 1300 mm. Its PC control system can import processing files and automatically optimize layouts, helping improve material utilization and production efficiency.

Key Technical Details:

1. Model: STM-8D-XP
2. Machine Type: Industrial Sliding Table Panel Saw
3. Sliding Table: 3200 × 435 mm
4. Gross Cutting Capacity: 3200 mm
5. Maximum Cutting Width: 1300 mm
6. Main Saw Blade: Ø300 mm (Ø250–Ø400 mm)
7. Scoring Saw Blade: Ø120 mm
8. Main Motor: 5.5 kW
9. Scoring Motor: 0.75 kW
10. Main Spindle Speed: 3000/4000/5000 rpm
11. Scoring Spindle Speed: 8000 rpm
12. Main Spindle Diameter: Ø30 mm
13. Scoring Spindle Diameter: Ø20 mm
14. Blade Tilting: 0–45°, servo motor controlled
15. Rip Fence: Servo motor controlled
16. Control: PC control with optimization software
17. Saw Blade: LEUCO
18. Protection Hood: Type A
19. Pressure Unit: Included
20. Net Weight: 1080 kg

Applications:

Suitable for professional woodworking, furniture manufacturing, cabinet production, panel processing, and precision cutting of wood-based sheet materials.

Warranty: 1 Year

Shipping: 7–30 Days according to the supplied information.

Shipping Information:

This product requires shipping. The supplied machine net weight is 1080 kg (2,381 lbs). For freight calculation, gross shipping weight and packing dimensions should be confirmed before ordering.

Approximate Shipping Reference:

1. Weight: Approx. 2,600 lbs packed — estimated for freight planning only
2. Length: Approx. 137 in
3. Width: Approx. 45 in
4. Height: Approx. 70 in

These shipping dimensions and gross weight are approximate estimates, not manufacturer-confirmed specifications.
