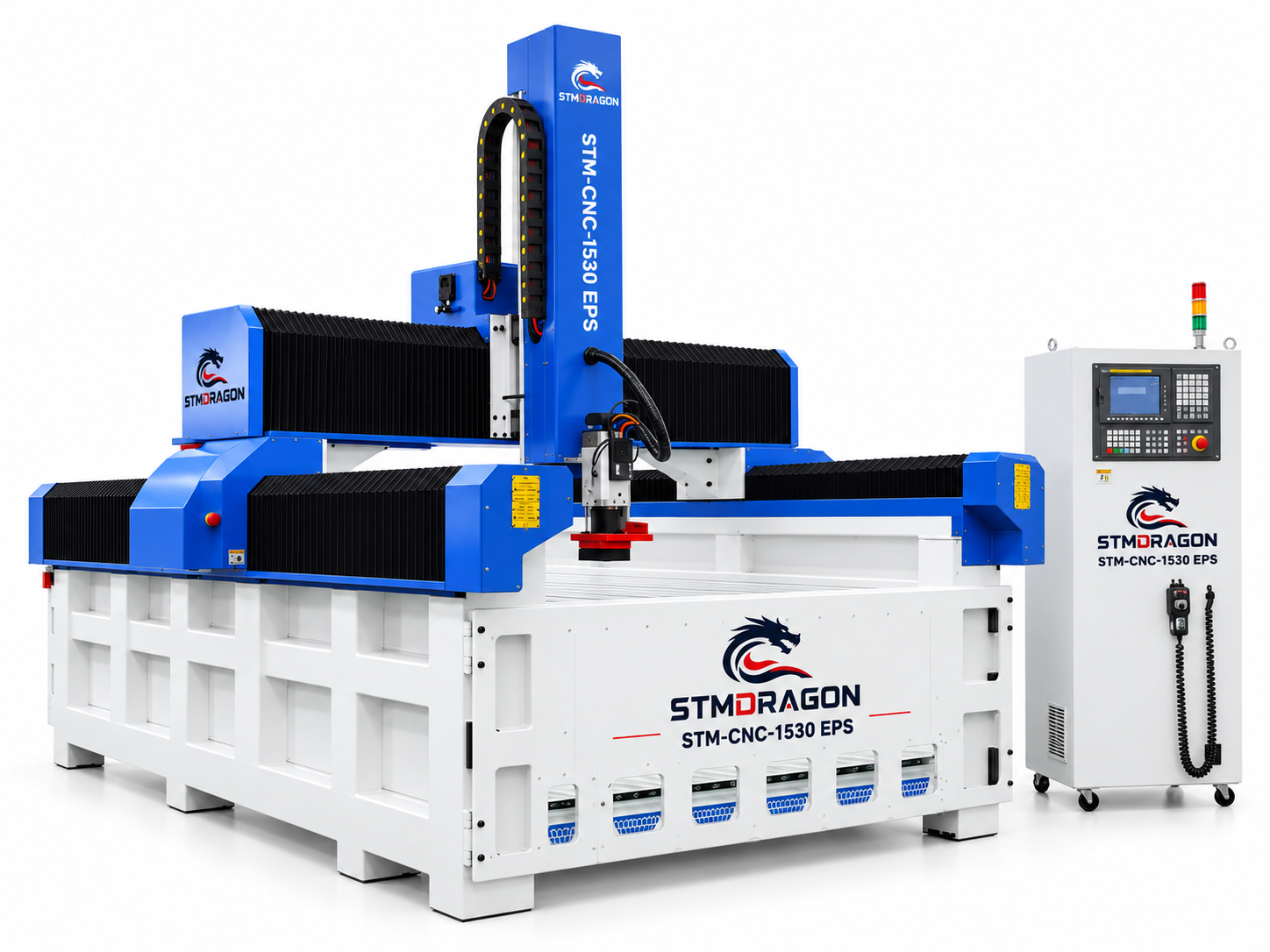

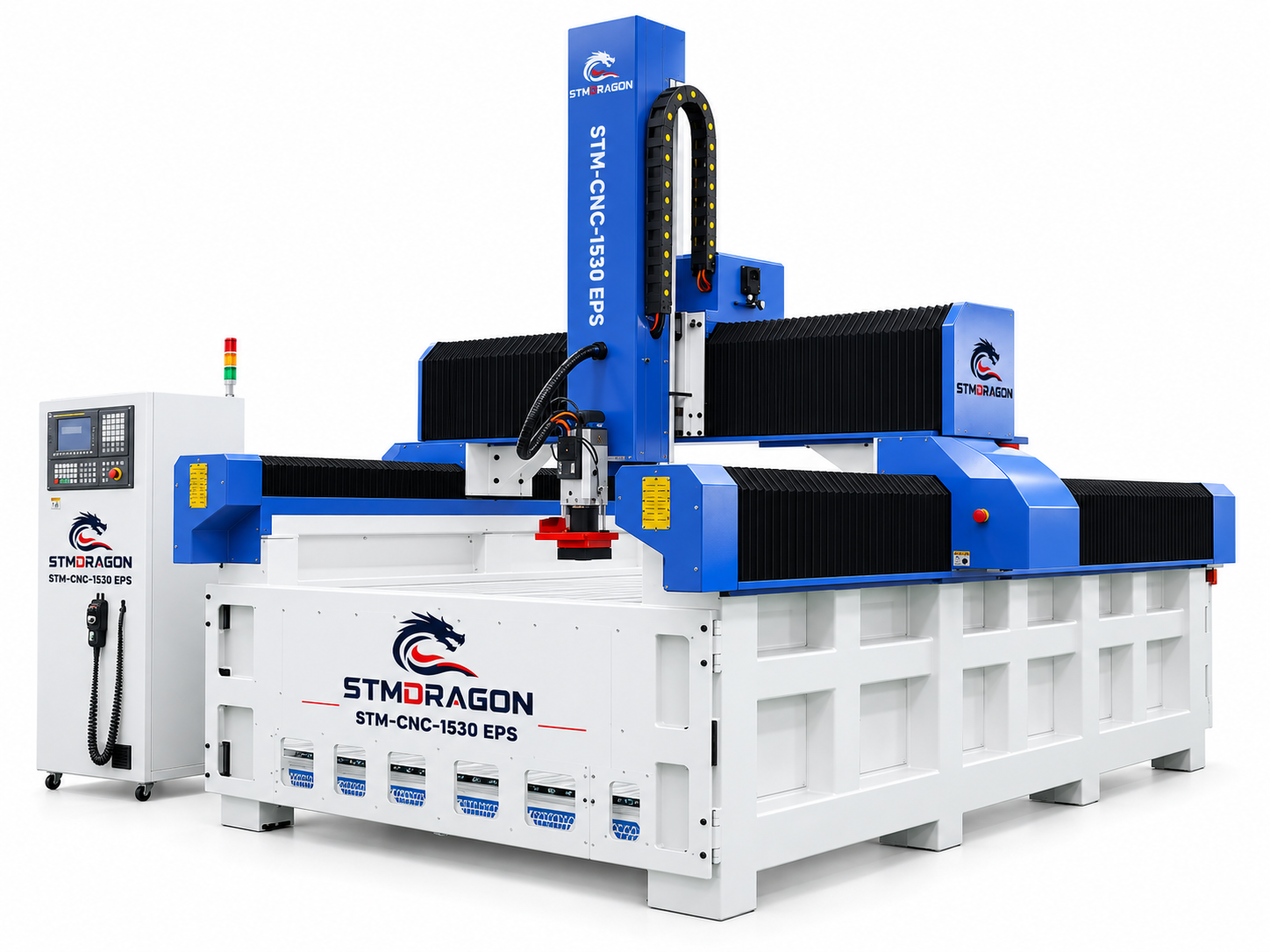

STMDRAGON STM-CNC-1530 EPS 4-Axis EPS Foam CNC Engraving Machine

The STMDRAGON STM-CNC-1530 EPS is a 4-axis EPS foam CNC engraving machine developed for large-format 3D engraving, foam processing, mold making, and non-metal material applications. Its spindle can swing from -90° to +90°, allowing multi-angle and three-dimensional processing.

The machine provides a 1500 × 3000 mm X/Y working area with 1100 mm Z-axis travel, making it suitable for large EPS foam models, casting patterns, molds, prototypes, sculptures, and similar applications. The working size and Z-axis height can also be customized according to production requirements.

Important Technical Features:

1. Model: STM-CNC-1530 EPS
2. Machine Type: 4-Axis EPS Foam CNC Engraving Machine
3. Working Size: 1500 × 3000 mm
4. Z-Axis Travel: 1100 mm
5. Spindle: Italy 9.6 kW ATC air-cooled spindle
6. Inverter: 11 kW Delta inverter

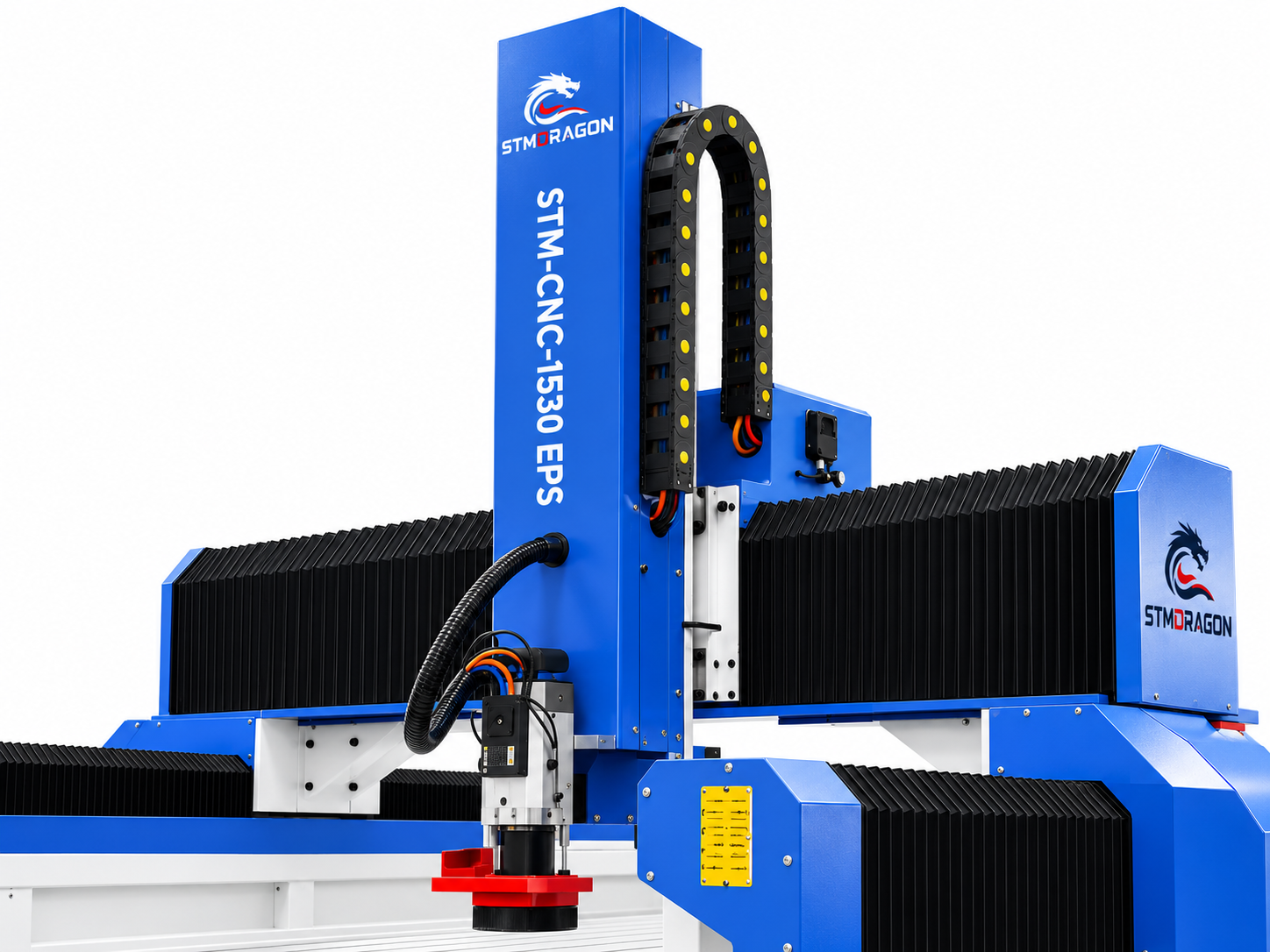

7. 4th Axis: Precision cycloidal pinwheel reducer, ±90° swing
8. Tool Changer: 8-position linear automatic tool changer

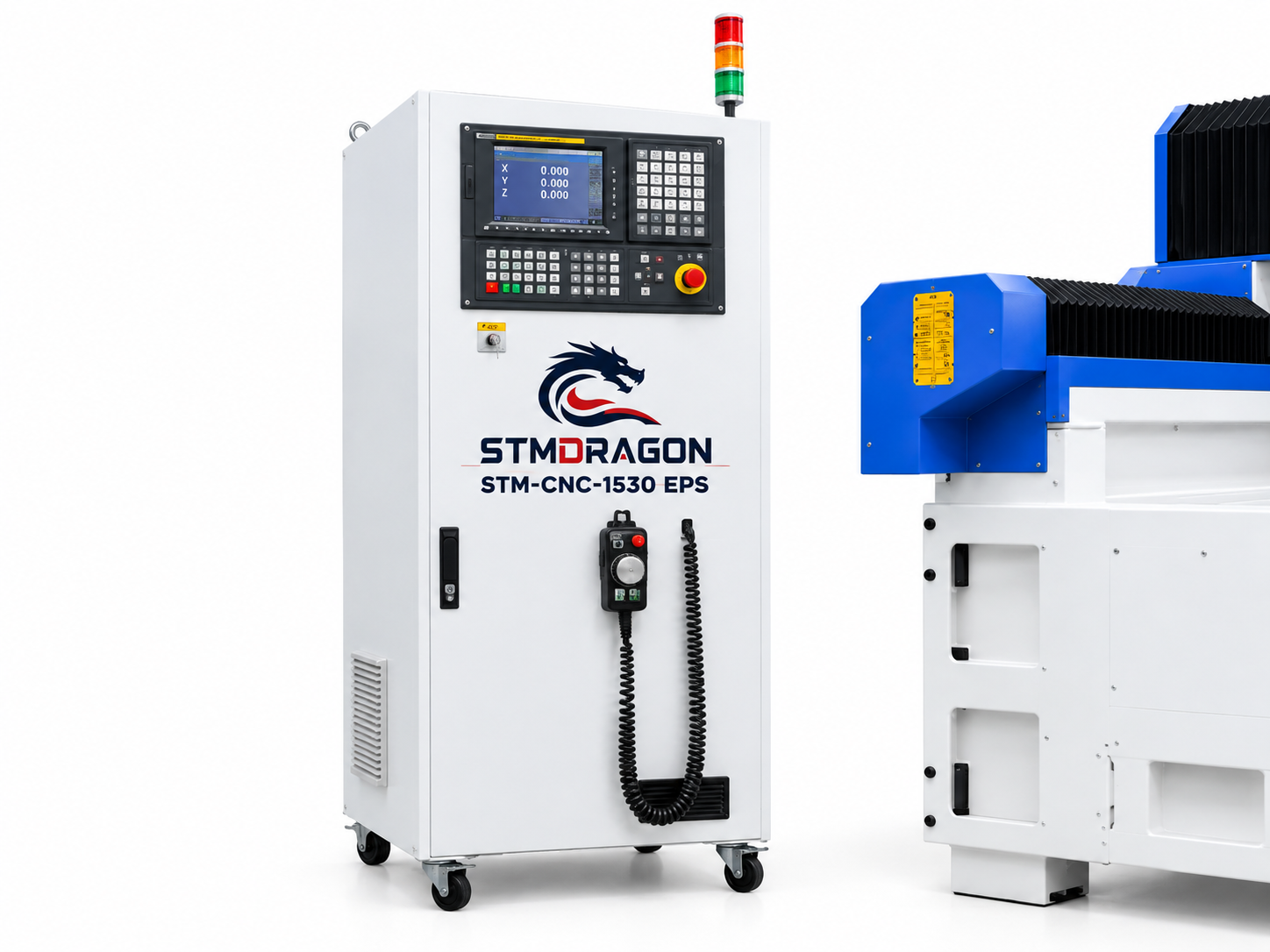

9. Control System: Taiwan Syntec
10. Servo System: Japan YASKAWA 850 W servo motor with 1000 W driver
11. Working Table: T-slot working table
12. Linear Guide: Taiwan #30 linear guide
13. X/Y Transmission: Taiwan/Germany helical rack and pinion
14. Z Transmission: Taiwan TBI high-precision ball screw
15. Traveling Speed: Up to 60 m/min
16. Working Speed: 0–20 m/min
17. Working Accuracy: ±0.03 mm
18. Re-positioning Accuracy: ±0.03 mm
19. Working Air Pressure: 0.8 MPa
20. Voltage: 220V 1PH/3PH 50/60Hz or 380V 3PH 50/60Hz
21. Compatible Software: ArtCAM, Alphacam, Type3, Ucancam, Aspire, PowerMill and others
22. Command Language: G Code & M Code
23. Lubrication: 1.5 L automatic lubrication system
24. Cables: Germany Igus cables with CE/cUL certification

Suitable Materials & Applications:

Designed mainly for EPS foam, Styrofoam, casting wood molds and other non-metal materials. Typical applications include foam mold making, architectural models, sculptures, prototypes, large 3D models, casting patterns, decorative components and industrial mold production.

Tooling:

The standard configuration supports ISO30 tool holders with ER32 collets, including φ4, φ6, 1/8 and 1/2 sizes. The linear automatic tool changer helps reduce manual tool-changing time during multi-tool production.

Optional Equipment:

Rotary device for cylindrical processing, dust collection systems, air compressors and higher-power spindle options such as 12 kW and 14 kW may be available depending on the final configuration.

Important Size:

Working area: 1500 × 3000 mm

Z-axis travel: 1100 mm

Warranty: 1 Year.

After-Sales Support: Free lifetime online technical support; overseas service is available according to the supplied information.
