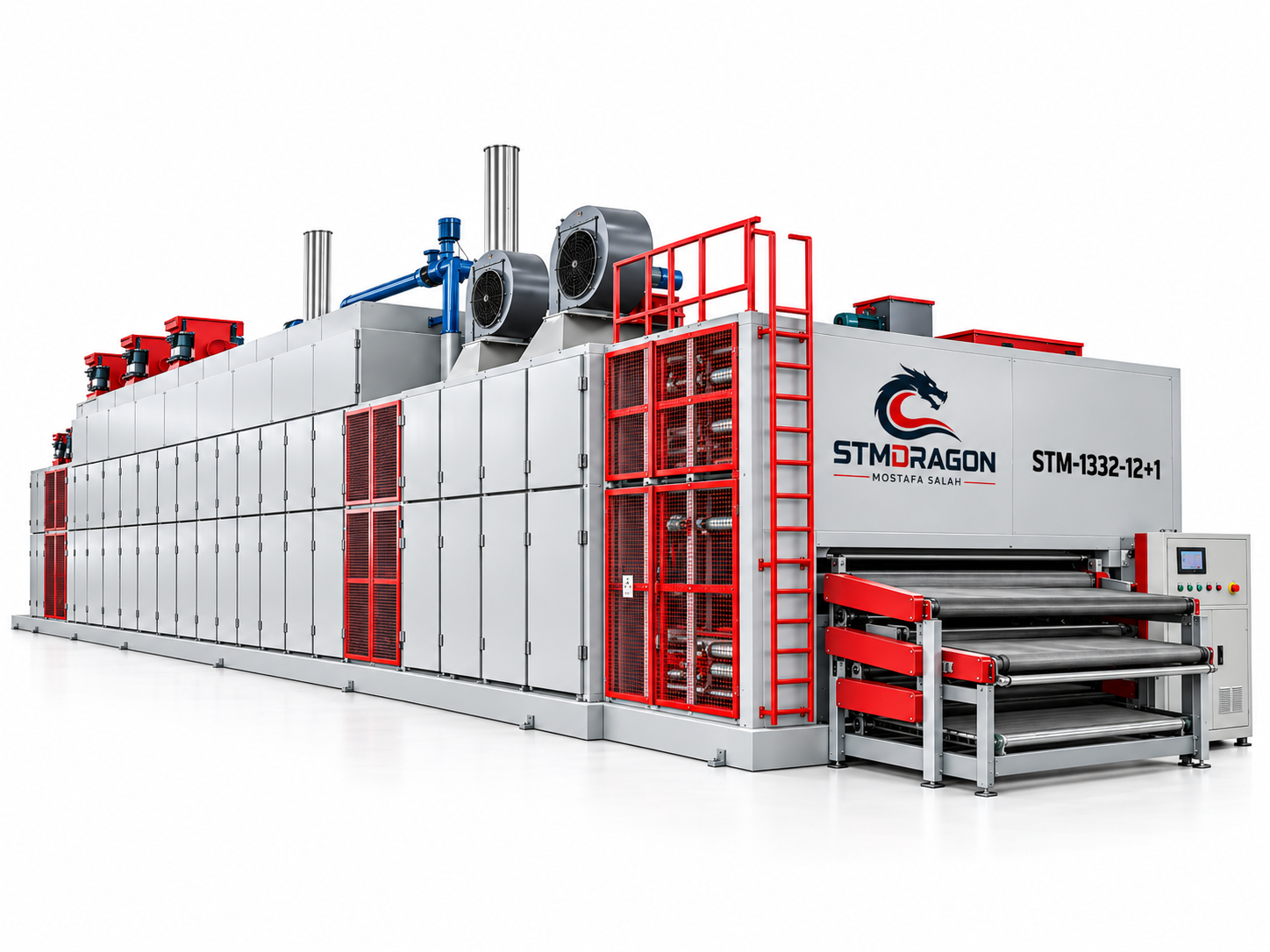

STMDRAGON STM-1332-12+1 2-Layer Veneer Roller Dryer Machine
STMDRAGON STM-1332-12+1 2-Layer Veneer Roller Dryer Machine - Image 2

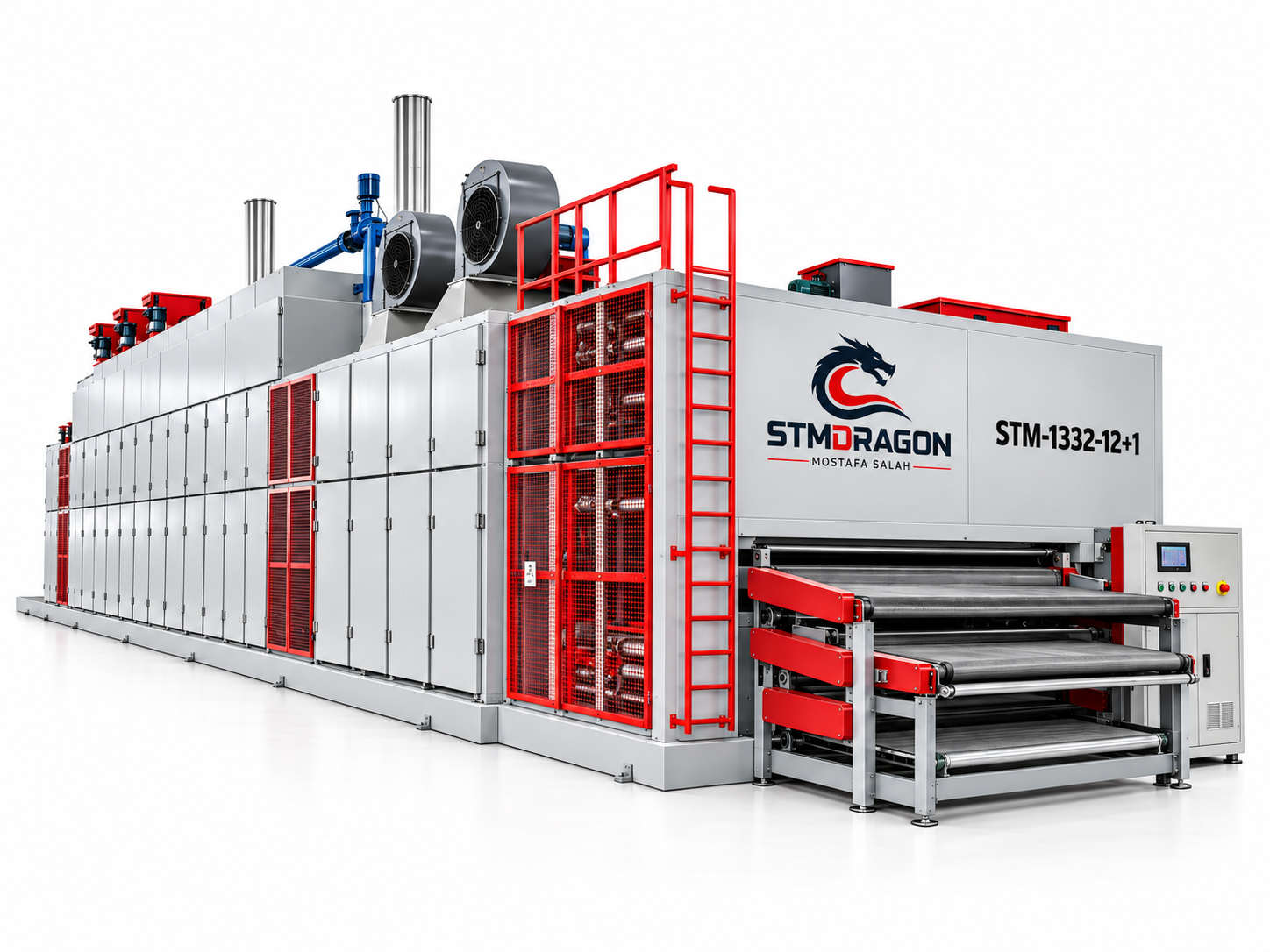

STMDRAGON STM-1332-12+1 2-Layer Veneer Roller Dryer Machine - Image 3
Woodworking Machinery

STMDRAGON STM-1332-12+1 2-Layer Veneer Roller Dryer Machine

STMDRAGON STM-1332-12+1 is a continuous 2-layer roller veneer dryer designed for efficient drying of plywood core and face veneers. With a 2800 mm working width, 24 m heating section, 2 m cooling section, 1.5–15 m/min transport speed, and approximately 2.4 m³/h drying capacity, it is suitable for continuous plywood and veneer production lines.

ConfigurationCustom
Working sizeOn request
ControlPLC
ExportFOB / CIF
Request a Quote →
Factory VerifiedExport readyAfter-Sales Support
Technical specifications

Technical specifications: STMDRAGON STM-1332-12+1 2-Layer Veneer Roller Dryer Machine

ModelSTM-1332-12+1
Machine Type2-Layer Veneer Roller Dryer
Working Width2800 mm
Working Layers2
Heating Section24,000 mm
Cooling Section2,000 mm
Veneer Transportation Speed1.5–15 m/min
Roller Spacing333 mm
Total Installed Power108 kW
Transport Motors7.5 kW × 2 = 15 kW
Heating Motors7.5 kW × 12 = 90 kW
Cooling Motor3 kW × 1 = 3 kW
Heating MediumSaturated steam or heat conduction oil
Saturated Steam Pressure0.6–1.0 MPa
Drying Temperature140–160°C with saturated steam / 160–190°C with heat conduction oil
Steam ConsumptionApproximately 2700 kg/h
Heat Conduction Oil RequirementApproximately 1,600,000 kcal/h
Veneer DensityApproximately 590 kg/m³
Suitable Veneer Thickness1.5–4.5 mm
Initial Veneer MoistureApproximately 60%
Final Veneer Moisture10% ± 2%
Load RatioApproximately 85%
Drying CapacityApproximately 2.4 m³/h
Overall Machine Size36,120 × 4,450 × 2,800 mm
Total Machine WeightApproximately 56,000 kg
FeedingWith automatic feeding
This product requires shippingYes
Approx. Shipping Weight123,459 lbs
Approx. Shipping Length1,422 in
Approx. Shipping Width175 in
Approx. Shipping Height110 in
Shipping Time7–30 Days according to the supplied information
Packing DimensionsTo Be Confirmed before final freight calculation
Production/Handling TimeTo Be Confirmed for the exact STM-1332-12+1 configuration
Warranty1 Year.
Applications

Applications: STMDRAGON STM-1332-12+1 2-Layer Veneer Roller Dryer Machine

The STMDRAGON STM-1332-12+1 2-Layer Veneer Roller Dryer Machine is a continuous industrial drying system designed for plywood core veneer and other veneer processing applications. It uses roller transportation through dedicated heating and cooling sections to reduce veneer moisture content efficiently and consistently.

The machine provides a 2800 mm working width and a two-layer working configuration. Its heating section consists of 12 × 2000 mm sections with a total heating length of 24,000 mm, followed by a 2000 mm cooling section. Veneer transportation speed can be adjusted from 1.5 to 15 m/min according to production requirements.

Key Technical Details:

  1. Model: STM-1332-12+1
  2. Machine Type: 2-Layer Veneer Roller Dryer
  3. Working Width: 2800 mm
  4. Working Layers: 2
  5. Heating Section: 24,000 mm
  6. Cooling Section: 2,000 mm
  7. Veneer Transportation Speed: 1.5–15 m/min
  8. Roller Spacing: 333 mm
  9. Total Installed Power: 108 kW
  10. Transport Motors: 7.5 kW × 2 = 15 kW
  11. Heating Motors: 7.5 kW × 12 = 90 kW
  12. Cooling Motor: 3 kW × 1 = 3 kW
  13. Heating Medium: Saturated steam or heat conduction oil
  14. Saturated Steam Pressure: 0.6–1.0 MPa
  15. Drying Temperature: 140–160°C with saturated steam / 160–190°C with heat conduction oil
  16. Steam Consumption: Approximately 2700 kg/h
  17. Heat Conduction Oil Requirement: Approximately 1,600,000 kcal/h
  18. Veneer Density: Approximately 590 kg/m³
  19. Suitable Veneer Thickness: 1.5–4.5 mm
  20. Initial Veneer Moisture: Approximately 60%
  21. Final Veneer Moisture: 10% ± 2%
  22. Load Ratio: Approximately 85%
  23. Drying Capacity: Approximately 2.4 m³/h
  24. Overall Machine Size: 36,120 × 4,450 × 2,800 mm
  25. Total Machine Weight: Approximately 56,000 kg
  26. Feeding: With automatic feeding

Applications:

The STM-1332-12+1 is designed for plywood manufacturing lines, core veneer drying, continuous veneer processing, and industrial wood-panel production where controlled veneer moisture content is required before further processing.

Important Shipping Information:

  1. This product requires shipping: Yes
  2. Approx. Shipping Weight: 123,459 lbs
  3. Approx. Shipping Length: 1,422 in
  4. Approx. Shipping Width: 175 in
  5. Approx. Shipping Height: 110 in
  6. Shipping Time: 7–30 Days according to the supplied information
  7. Packing Dimensions: To Be Confirmed before final freight calculation
  8. Production/Handling Time: To Be Confirmed for the exact STM-1332-12+1 configuration

Warranty: 1 Year.

Tell us your material, size and output target. STMDRAGON will recommend the suitable configuration.

Product details

Additional information

Weight 123459 kg
Dimensions 1422 × 175 × 110 cm
Model

STM-1332-12+1
Machine Type

2-Layer Veneer Roller Dryer
Working Width

2800 mm
Working Layers

2
Heating Section

24,000 mm
Cooling Section

2,000 mm
Veneer Transportation Speed

1.5–15 m/min
Roller Spacing

333 mm
Total Installed Power

108 kW
Transport Motors

7.5 kW × 2 = 15 kW
Heating Motors

7.5 kW × 12 = 90 kW
Cooling Motor

3 kW × 1 = 3 kW
Heating Medium

Saturated steam or heat conduction oil
Saturated Steam Pressure

0.6–1.0 MPa
Drying Temperature

140–160°C with saturated steam / 160–190°C with heat conduction oil
Steam Consumption

Approximately 2700 kg/h
Heat Conduction Oil Requirement

Approximately 1,600,000 kcal/h
Veneer Density

Approximately 590 kg/m³
Suitable Veneer Thickness

1.5–4.5 mm
Initial Veneer Moisture

Approximately 60%
Final Veneer Moisture

10% ± 2%
Load Ratio

Approximately 85%
Drying Capacity

Approximately 2.4 m³/h
Overall Machine Size

36,120 × 4,450 × 2,800 mm
Total Machine Weight

Approximately 56,000 kg
Feeding

With automatic feeding
This product requires shipping

Yes
Approx. Shipping Weight

123,459 lbs
Approx. Shipping Length

1,422 in
Approx. Shipping Width

175 in
Approx. Shipping Height

110 in
Shipping Time

7–30 Days according to the supplied information
Packing Dimensions

To Be Confirmed before final freight calculation
Production/Handling Time

To Be Confirmed for the exact STM-1332-12+1 configuration
Warranty

1 Year.
